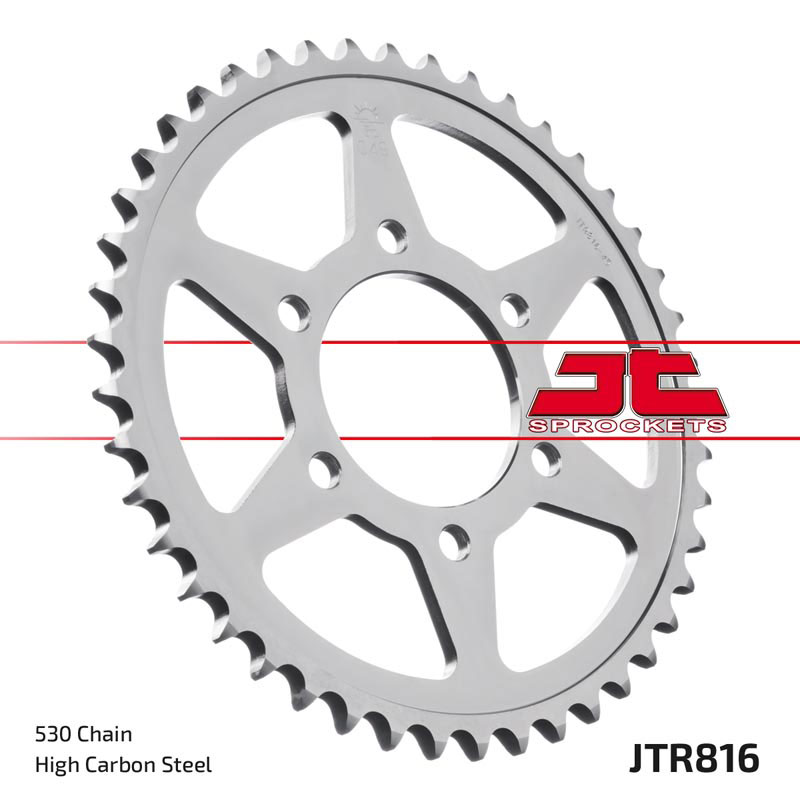

Steel Rear Sprocket – JTR816.47 Teeth
![JTR816[1]](https://rawpowermotorcycles.com/wp-content/uploads/2024/12/JTR8161-2.png "JTR816[1]")
Description
Steel Sprockets JT Steel Sprockets are manufactured using only the finest grade of C49 high carbon steel for the rear... read more- Price
£ 30.80
Description
Steel Sprockets
JT Steel Sprockets are manufactured using only the finest grade of C49 high carbon steel for the rear sprocket.

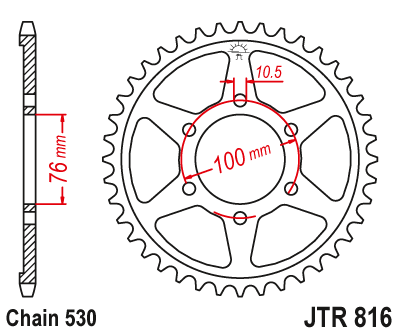

Pitch : 530
Inner Diameter : 76 mm
PCD : 100 mm
Bolt hole diameter : 10.5 mm
Number of mounting bolts : 6
Bolt type : Flathead
Number of teeth : 47
Sprocket material : Steel
Manufacturer : JT
Search Your Bike Here…
Vehicle Fitment
| Make | Model | Year |
|---|---|---|
| Suzuki | GR 650 cast wheel | 1983 |
| Suzuki | GR 650 cast wheel | 1984 |
| Suzuki | GR 650 cast wheel | 1985 |
| Suzuki | GR 650 cast wheel | 1986 |
| Suzuki | GR 650 cast wheel | 1987 |
| Suzuki | GR 650 cast wheel | 1988 |
| Suzuki | GR 650 cast wheel | 1989 |
| Suzuki | GR 650 X spoked wheel | 1983 |
| Suzuki | GR 650 X spoked wheel | 1984 |
| Suzuki | GR 650 X spoked wheel | 1985 |
| Suzuki | GR 650 X spoked wheel | 1986 |
| Suzuki | GR 650 X spoked wheel | 1987 |
| Suzuki | GR 650 X spoked wheel | 1988 |
| Suzuki | GR 650 X spoked wheel | 1989 |
| Suzuki | GS 550 E cast wheel | 1980 |
| Suzuki | GS 550 L cast wheel | 1980 |
| Suzuki | GS 550 M Katana | 1981 |
| Suzuki | GS 550 M Katana | 1982 |
| Suzuki | GS 550 M Katana | 1983 |
| Suzuki | GS 550 M Katana anti dive | 1982 |
| Suzuki | GS 550 M Katana anti dive | 1983 |
| Suzuki | GS 550 spoked wheel | 1978 |
| Suzuki | GS 550 spoked wheel | 1979 |
| Suzuki | GS 550 T cast wheel | 1981 |
| Suzuki | GSF 1200 Bandit | 1996 |
| Suzuki | GSF 1200 Bandit | 1997 |
| Suzuki | GSF 1200 Bandit | 1998 |
| Suzuki | GSF 1200 Bandit | 1999 |
| Suzuki | GSF 1200 Bandit | 2000 |
| Suzuki | GSF 1200 Bandit | 2001 |
| Suzuki | GSF 1200 Bandit | 2002 |
| Suzuki | GSF 1200 Bandit | 2003 |
| Suzuki | GSF 1200 Bandit | 2004 |
| Suzuki | GSF 1200 Bandit | 2005 |
| Suzuki | GSF 1200 S Bandit | 1996 |
| Suzuki | GSF 1200 S Bandit | 1997 |
| Suzuki | GSF 1200 S Bandit | 1998 |
| Suzuki | GSF 1200 S Bandit | 1999 |
| Suzuki | GSF 1200 S Bandit | 2000 |
| Suzuki | GSF 1200 S Bandit | 2001 |
| Suzuki | GSF 1200 S Bandit | 2002 |
| Suzuki | GSF 1200 S Bandit | 2003 |
| Suzuki | GSF 1200 S Bandit | 2004 |
| Suzuki | GSF 1200 S Bandit | 2005 |
| Suzuki | GSF 1200 SA Bandit ABS | 1997 |
| Suzuki | GSF 1200 SA Bandit ABS | 1998 |
| Suzuki | GSF 1200 SA Bandit ABS | 1999 |
| Suzuki | GSF 1200 SA Bandit ABS | 2000 |
| Suzuki | GSF 1200 SZ Bandit ABS | 2005 |
| Suzuki | GSX 1100 F | 1988 |
| Suzuki | GSX 1100 F | 1989 |
| Suzuki | GSX 1100 F | 1990 |
| Suzuki | GSX 1100 F | 1991 |
| Suzuki | GSX 1100 F | 1992 |
| Suzuki | GSX 1100 F | 1993 |
| Suzuki | GSX 1100 F | 1994 |
| Suzuki | GSX 1100 F | 1995 |
| Suzuki | GSX 1100 F | 1996 |
| Suzuki | GSX 1200 Inazuma | 1999 |
| Suzuki | GSX 1200 Inazuma | 2000 |
| Suzuki | GSX 400 FE Katana | 1981 |
| Suzuki | GSX 400 FE Katana | 1982 |
| Suzuki | GSX 400 FE Katana | 1983 |
| Suzuki | GSX 550 E handlebar fairing | 1983 |
| Suzuki | GSX 550 E handlebar fairing | 1984 |
| Suzuki | GSX 550 E handlebar fairing | 1985 |
| Suzuki | GSX 550 E handlebar fairing | 1986 |
| Suzuki | GSX 550 EF full faring | 1984 |
| Suzuki | GSX 550 EF full faring | 1985 |
| Suzuki | GSX 550 EF full faring | 1986 |
| Suzuki | GSX 550 EF full faring | 1987 |
| Suzuki | GSX 550 ES half faring | 1983 |
| Suzuki | GSX 550 ES half faring | 1984 |
| Suzuki | GSX 550 ES half faring | 1985 |
| Suzuki | GSX 550 ES half faring | 1986 |
| Suzuki | GSX 550 ES half faring | 1987 |
| Suzuki | GSX 550 EU handlebar fairing | 1985 |
| Suzuki | GSX 550 EU handlebar fairing | 1986 |
| Suzuki | GSX 550 EU handlebar fairing | 1987 |
| Suzuki | GSX 750 EF full faring | 1984 |
| Suzuki | GSX 750 EF full faring | 1985 |
| Suzuki | GSX 750 EF full faring | 1986 |
| Suzuki | GSX 750 ES half faring | 1983 |
| Suzuki | GSX 750 ES half faring | 1984 |
| Suzuki | GSX 750 ES half faring | 1985 |
| Suzuki | GSX 750 ES half faring | 1986 |
| Suzuki | GSX 750 Inazuma | 1998 |
| Suzuki | GSX 750 Inazuma | 1999 |
| Suzuki | GSX 750 Inazuma | 2000 |
| Suzuki | GSX 750 Inazuma | 2001 |
| Suzuki | GSX 750 Inazuma | 2002 |
| Suzuki | GSX 750 Inazuma | 2003 |
| Suzuki | GSX-R 1100 | 1989 |
| Suzuki | GSX-R 1100 | 1990 |
| Suzuki | GSX-R 1100 | 1991 |
| Suzuki | GSX-R 1100 | 1992 |
| Suzuki | GSX-R 1100 W | 1993 |
| Suzuki | GSX-R 1100 W | 1994 |
| Suzuki | GSX-R 1100 W | 1995 |
| Suzuki | GSX-R 1100 W | 1996 |
| Suzuki | GSX-R 1100 W | 1997 |
| Suzuki | GSX-R 750 | 1990 |
| Suzuki | GSX-R 750 | 1991 |
| Suzuki | GSX-R 750 W | 1992 |
| Suzuki | GSX-R 750 W | 1993 |
| Suzuki | GSX-R 750 W | 1994 |
| Suzuki | GSX-R 750 W | 1995 |
| Suzuki | GT 750 | 1975 |
| Suzuki | GT 750 | 1976 |
| Suzuki | RF 900 R | 1994 |
| Suzuki | RF 900 R | 1995 |
| Suzuki | RF 900 R | 1996 |
| Suzuki | RF 900 R | 1997 |
