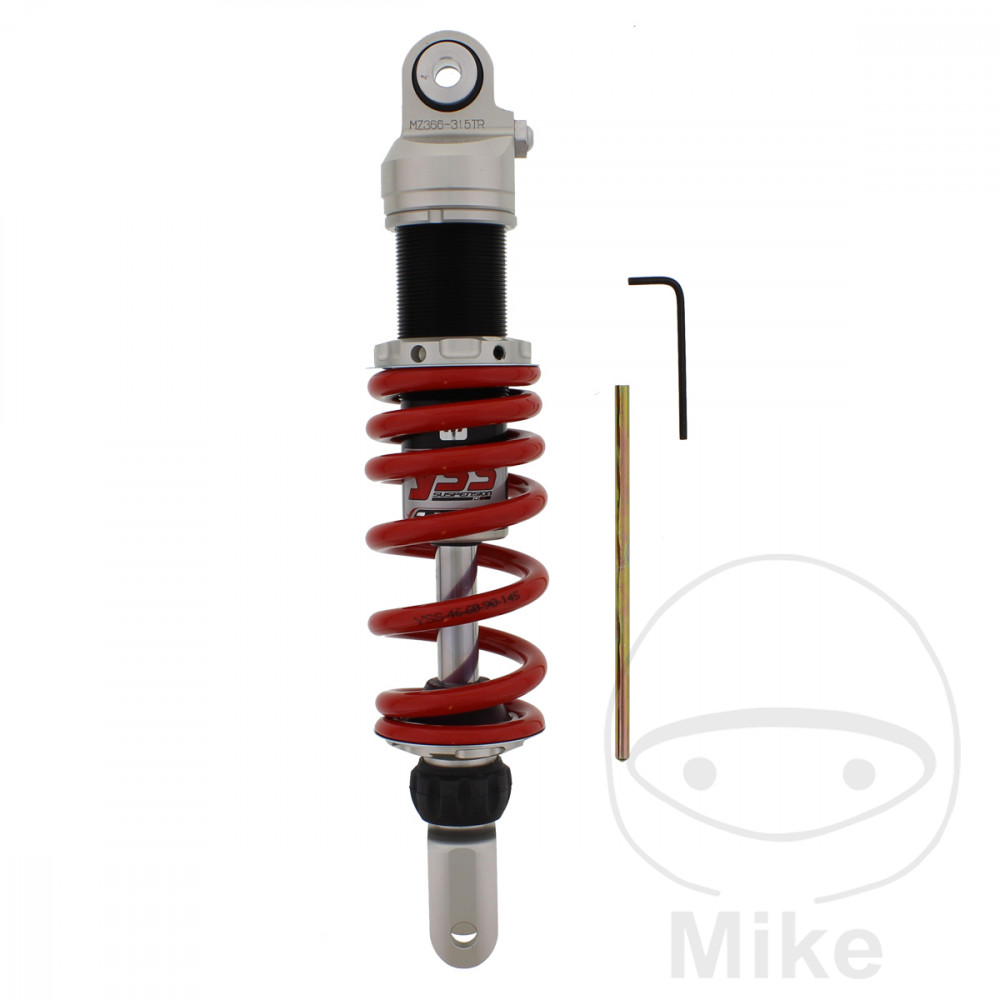

YSS Rear Mono Shock Unit – MZ366-315TR-09-85

• Milled aluminum body, suspension strut adjustable in spring preload and rebound (30 clicks).
• The spring preload is locked using a threaded pin.
• The length of the damper is adjustable by + 10mm.
• Adjustment tool included.
• The spring preload is locked using a grub screw.

Technical Data:
Type : Gas Damper
Top mount : Eye
Inner Diameter Eye : 10 mm
Length : 315 mm
Bottom mount : Fork
Inner Diameter Eye : 10 mm
Fork width : 30 mm
Adjustment : Preload (continuous)
Rebound
Spring colour : Red
Spring Characteristics : 60-90
Spring Length : 145 mm
Spring Diameter : 46 mm
Damper reservoir : No
Manufacturer : YSS
Piston diameter : 36 mm
Rod Diameter : 16 mm
