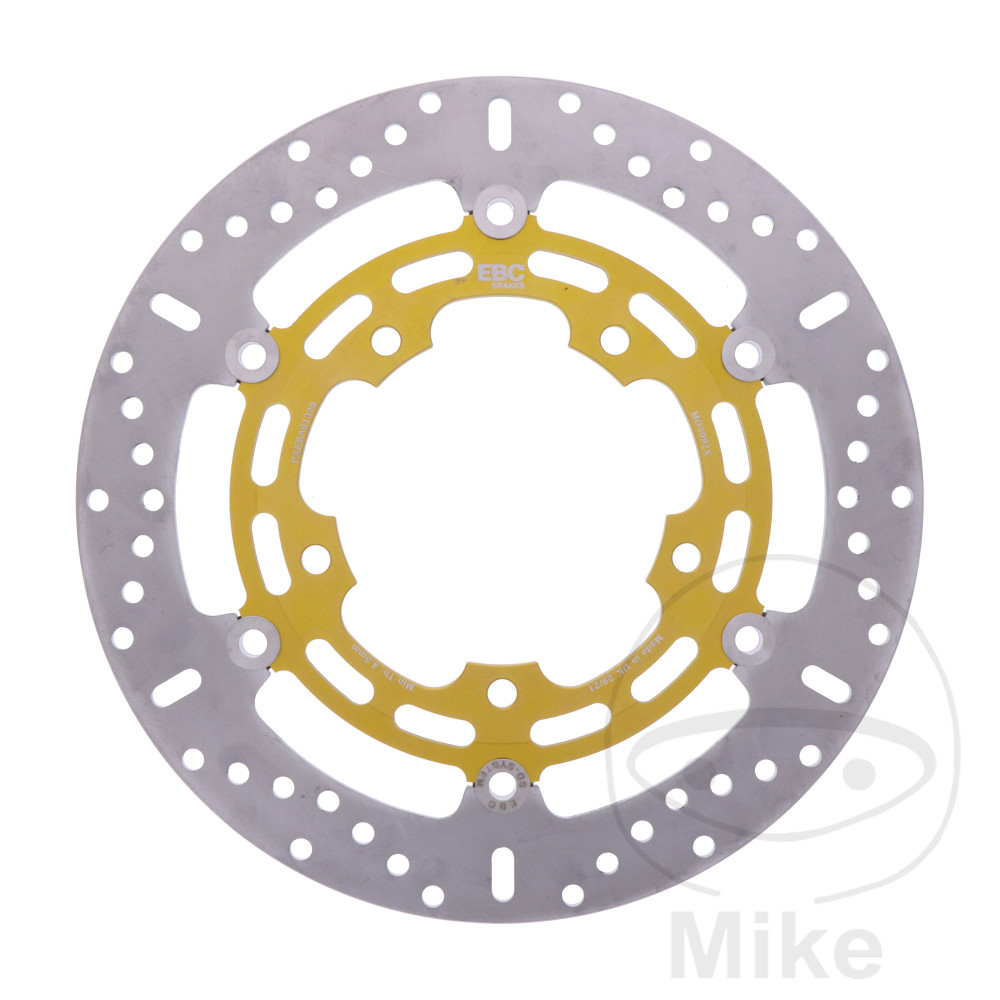

Brake Disc Front – X EBC – MD3092X
Description
BC X / XC Series – Fully floating brake discs for the front wheel These brake discs replace many of... read more- Price
£ 172.24
Description
BC X / XC Series – Fully floating brake discs for the front wheel
These brake discs replace many of the LS (left) / RS (right) brake discs and can be installed on both sides.
The steel used for the new EBC brake discs is a special stainless steel compound with a higher frictional effect than that of conventional heat treated stainless steel brake discs. With the 10% improvement in the friction effect, the braking force is increased even further.
The weight of the new”X” and”XC” series is reduced by a further 5-10% thanks to the 6-rivet system with a lightweight inner ring, which in turn represents an improvement over conventional brake discs
The new rotors feature EBC’s unique and patented SD system, whose square rivets in the recesses of the brake disc, under the heat generated during braking, allow for unrestricted expansion of the outer and inner rings without affecting the riveted joint
Such an impairment occurs when the brake disc is heated by strong braking and the outer ring touches the (normally round) rivets that separate the outer ring from the inner ring. The new EBC system prevents this problem, which causes 100% of the brake disc defects caused by disc distortion and vibration.
What is the SD system? It is the new square riveting system from EBC. This system completely prevents distortion of the brake disc, increases the service life of the brake disc and improves the durability of the braking effect.
Outer Diameter : 310 mm
Inner Diameter : 121.3 mm
PCD : 142 mm
Number of mounting bolts : 5
Bolt hole diameter : 10.5 mm
Thickness : 5 mm
Construction : Floating
Manufacturer : EBC
Vehicle Fitment
| Make | Model | Year |
|---|---|---|
| Suzuki | DL 1050 V-Strom ABS cast wheel (RQ) | 2020 |
| Suzuki | DL 1050 V-Strom ABS cast wheel (RQ) | 2021 |
| Suzuki | DL 1050 V-Strom ABS cast wheel (RQ) | 2022 |
| Suzuki | DL 1050 XT V-Strom ABS Spoked wheel (RC) | 2020 |
| Suzuki | DL 1050 XT V-Strom ABS Spoked wheel (RC) | 2021 |
| Suzuki | DL 1050 XT V-Strom ABS Spoked wheel (RC) | 2022 |
| Suzuki | DL 650 A V-Strom ABS | 2007 |
| Suzuki | DL 650 A V-Strom ABS | 2008 |
| Suzuki | DL 650 A V-Strom ABS | 2009 |
| Suzuki | DL 650 A V-Strom ABS | 2010 |
| Suzuki | DL 650 A V-Strom ABS | 2011 |
| Suzuki | DL 650 A V-Strom ABS | 2012 |
| Suzuki | DL 650 A V-Strom ABS | 2013 |
| Suzuki | DL 650 A V-Strom ABS | 2014 |
| Suzuki | DL 650 A V-Strom ABS | 2015 |
| Suzuki | DL 650 A V-Strom ABS | 2016 |
| Suzuki | DL 650 A V-Strom ABS | 2017 |
| Suzuki | DL 650 A V-Strom ABS | 2018 |
| Suzuki | DL 650 A V-Strom ABS | 2019 |
| Suzuki | DL 650 A V-Strom ABS | 2020 |
| Suzuki | DL 650 AU3 V-Strom ABS | 2007 |
| Suzuki | DL 650 AU3 V-Strom ABS | 2008 |
| Suzuki | DL 650 AUE V-Strom ABS | 2009 |
| Suzuki | DL 650 AUE V-Strom ABS | 2010 |
| Suzuki | DL 650 AUE V-Strom ABS | 2011 |
| Suzuki | DL 650 AUE V-Strom ABS | 2012 |
| Suzuki | DL 650 AUE V-Strom ABS | 2013 |
| Suzuki | DL 650 AUE V-Strom ABS | 2014 |
| Suzuki | DL 650 AUE V-Strom ABS | 2015 |
| Suzuki | DL 650 AUE V-Strom ABS | 2016 |
| Suzuki | DL 650 AUE V-Strom ABS | 2017 |
| Suzuki | DL 650 AUE V-Strom ABS | 2018 |
| Suzuki | DL 650 AUE V-Strom ABS | 2019 |
| Suzuki | DL 650 AUE V-Strom ABS | 2020 |
| Suzuki | DL 650 U3 V-Strom | 2007 |
| Suzuki | DL 650 U3 V-Strom | 2008 |
| Suzuki | DL 650 UE V-Strom | 2009 |
| Suzuki | DL 650 UE V-Strom | 2010 |
| Suzuki | DL 650 V-Strom | 2007 |
| Suzuki | DL 650 V-Strom | 2008 |
| Suzuki | DL 650 V-Strom | 2009 |
| Suzuki | DL 650 V-Strom | 2010 |
| Suzuki | DL 650 V-Strom | 2011 |
| Suzuki | DL 650 XT A V-Strom ABS Spoked wheels | 2015 |
| Suzuki | DL 650 XT A V-Strom ABS Spoked wheels | 2016 |
| Suzuki | DL 650 XT A V-Strom ABS Spoked wheels | 2017 |
| Suzuki | DL 650 XT A V-Strom ABS Spoked wheels | 2018 |
| Suzuki | DL 650 XT A V-Strom ABS Spoked wheels | 2019 |
| Suzuki | DL 650 XT A V-Strom ABS Spoked wheels | 2020 |
| Suzuki | DL 650 XT AUE V-Strom ABS Spoked wheels | 2015 |
| Suzuki | DL 650 XT AUE V-Strom ABS Spoked wheels | 2016 |
| Suzuki | DL 650 XT AUE V-Strom ABS Spoked wheels | 2017 |
| Suzuki | DL 650 XT AUE V-Strom ABS Spoked wheels | 2018 |
| Suzuki | DL 650 XT AUE V-Strom ABS Spoked wheels | 2019 |
| Suzuki | DL 650 XT AUE V-Strom ABS Spoked wheels | 2020 |
| Suzuki | GSF 1200 A Bandit ABS | 2006 |
| Suzuki | GSF 1200 Bandit | 2006 |
| Suzuki | GSF 1200 S Bandit | 2006 |
| Suzuki | GSF 1200 SA Bandit ABS | 2006 |
| Suzuki | GSF 1250 A Bandit ABS | 2007 |
| Suzuki | GSF 1250 A Bandit ABS | 2008 |
| Suzuki | GSF 1250 A Bandit ABS | 2009 |
| Suzuki | GSF 1250 A Bandit ABS | 2010 |
| Suzuki | GSF 1250 A Bandit ABS | 2011 |
| Suzuki | GSF 1250 A Bandit ABS | 2012 |
| Suzuki | GSF 1250 Bandit | 2007 |
| Suzuki | GSF 1250 Bandit | 2008 |
| Suzuki | GSF 1250 Bandit | 2009 |
| Suzuki | GSF 1250 Bandit | 2010 |
| Suzuki | GSF 1250 Bandit | 2011 |
| Suzuki | GSF 1250 S Bandit | 2007 |
| Suzuki | GSF 1250 S Bandit | 2008 |
| Suzuki | GSF 1250 S Bandit | 2009 |
| Suzuki | GSF 1250 S Bandit | 2010 |
| Suzuki | GSF 1250 SA Bandit ABS | 2007 |
| Suzuki | GSF 1250 SA Bandit ABS | 2008 |
| Suzuki | GSF 1250 SA Bandit ABS | 2009 |
| Suzuki | GSF 1250 SA Bandit ABS | 2010 |
| Suzuki | GSF 1250 SA Bandit ABS | 2011 |
| Suzuki | GSF 1250 SA Bandit ABS | 2012 |
| Suzuki | GSF 1250 SA Bandit ABS | 2013 |
| Suzuki | GSF 1250 SA Bandit ABS | 2014 |
| Suzuki | GSF 1250 SA Bandit ABS | 2015 |
| Suzuki | GSF 1250 SA Bandit ABS | 2016 |
| Suzuki | GSF 1250 SA Bandit ABS | 2017 |
| Suzuki | GSF 650 A Bandit ABS | 2007 |
| Suzuki | GSF 650 A Bandit ABS | 2008 |
| Suzuki | GSF 650 A Bandit ABS | 2009 |
| Suzuki | GSF 650 A Bandit ABS | 2010 |
| Suzuki | GSF 650 A Bandit ABS | 2011 |
| Suzuki | GSF 650 A Bandit ABS | 2012 |
| Suzuki | GSF 650 A Bandit ABS | 2013 |
| Suzuki | GSF 650 Bandit | 2007 |
| Suzuki | GSF 650 Bandit | 2008 |
| Suzuki | GSF 650 Bandit | 2009 |
| Suzuki | GSF 650 Bandit | 2010 |
| Suzuki | GSF 650 Bandit | 2011 |
| Suzuki | GSF 650 Bandit | 2012 |
| Suzuki | GSF 650 Bandit | 2013 |
| Suzuki | GSF 650 S Bandit | 2007 |
| Suzuki | GSF 650 S Bandit | 2008 |
| Suzuki | GSF 650 S Bandit | 2009 |
| Suzuki | GSF 650 S Bandit | 2010 |
| Suzuki | GSF 650 S Bandit | 2011 |
| Suzuki | GSF 650 S Bandit | 2012 |
| Suzuki | GSF 650 S Bandit | 2013 |
| Suzuki | GSF 650 S Bandit | 2014 |
| Suzuki | GSF 650 SA Bandit ABS | 2007 |
| Suzuki | GSF 650 SA Bandit ABS | 2008 |
| Suzuki | GSF 650 SA Bandit ABS | 2009 |
| Suzuki | GSF 650 SA Bandit ABS | 2010 |
| Suzuki | GSF 650 SA Bandit ABS | 2011 |
| Suzuki | GSF 650 SA Bandit ABS | 2012 |
| Suzuki | GSF 650 SA Bandit ABS | 2013 |
| Suzuki | GSF 650 SA Bandit ABS | 2014 |
| Suzuki | GSF 650 SA Bandit ABS | 2015 |
| Suzuki | GSF 650 SA Bandit ABS | 2016 |
| Suzuki | GSF 650 SU Bandit | 2007 |
| Suzuki | GSF 650 SU Bandit | 2008 |
| Suzuki | GSF 650 SU Bandit | 2009 |
| Suzuki | GSF 650 SU Bandit | 2010 |
| Suzuki | GSF 650 SU Bandit | 2011 |
| Suzuki | GSF 650 SUA Bandit ABS | 2007 |
| Suzuki | GSF 650 SUA Bandit ABS | 2008 |
| Suzuki | GSF 650 SUA Bandit ABS | 2009 |
| Suzuki | GSF 650 SUA Bandit ABS | 2010 |
| Suzuki | GSF 650 SUA Bandit ABS | 2011 |
| Suzuki | GSF 650 SUA Bandit ABS | 2012 |
| Suzuki | GSF 650 SUA Bandit ABS | 2013 |
| Suzuki | GSF 650 SUA Bandit ABS | 2014 |
| Suzuki | GSF 650 SUA Bandit ABS | 2015 |
| Suzuki | GSF 650 SUA Bandit ABS | 2016 |
| Suzuki | GSF 650 U Bandit | 2007 |
| Suzuki | GSF 650 U Bandit | 2008 |
| Suzuki | GSF 650 U Bandit | 2009 |
| Suzuki | GSF 650 U Bandit | 2010 |
| Suzuki | GSF 650 U Bandit | 2011 |
| Suzuki | GSF 650 UA Bandit ABS | 2007 |
| Suzuki | GSF 650 UA Bandit ABS | 2008 |
| Suzuki | GSF 650 UA Bandit ABS | 2009 |
| Suzuki | GSF 650 UA Bandit ABS | 2010 |
| Suzuki | GSF 650 UA Bandit ABS | 2011 |
| Suzuki | GSR 600 | 2006 |
| Suzuki | GSR 600 | 2007 |
| Suzuki | GSR 600 | 2008 |
| Suzuki | GSR 600 | 2009 |
| Suzuki | GSR 600 | 2010 |
| Suzuki | GSR 600 A ABS | 2007 |
| Suzuki | GSR 600 A ABS | 2008 |
| Suzuki | GSR 600 A ABS | 2009 |
| Suzuki | GSR 600 A ABS | 2010 |
| Suzuki | GSR 600 A ABS | 2011 |
| Suzuki | GSR 600 U | 2006 |
| Suzuki | GSR 600 U | 2007 |
| Suzuki | GSR 600 U | 2008 |
| Suzuki | GSR 600 U | 2009 |
| Suzuki | GSR 600 U | 2010 |
| Suzuki | GSR 600 UA ABS | 2007 |
| Suzuki | GSR 600 UA ABS | 2008 |
| Suzuki | GSR 600 UA ABS | 2009 |
| Suzuki | GSR 600 UA ABS | 2010 |
| Suzuki | GSR 600 UA ABS | 2011 |
| Suzuki | GSR 750 | 2011 |
| Suzuki | GSR 750 | 2012 |
| Suzuki | GSR 750 | 2013 |
| Suzuki | GSR 750 A ABS | 2012 |
| Suzuki | GSR 750 A ABS | 2013 |
| Suzuki | GSR 750 A ABS | 2014 |
| Suzuki | GSR 750 A ABS | 2015 |
| Suzuki | GSR 750 A ABS | 2016 |
| Suzuki | GSR 750 A ABS | 2017 |
| Suzuki | GSR 750 AUE ABS | 2012 |
| Suzuki | GSR 750 AUE ABS | 2013 |
| Suzuki | GSR 750 AUE ABS | 2014 |
| Suzuki | GSR 750 AUE ABS | 2015 |
| Suzuki | GSR 750 UE | 2011 |
| Suzuki | GSR 750 UE | 2012 |
| Suzuki | GSR 750 UE | 2013 |
| Suzuki | GSR 750 Z | 2014 |
| Suzuki | GSR 750 Z | 2015 |
| Suzuki | GSR 750 ZA ABS | 2014 |
| Suzuki | GSR 750 ZA ABS | 2015 |
| Suzuki | GSX 1250 FA ABS | 2010 |
| Suzuki | GSX 1250 FA ABS | 2011 |
| Suzuki | GSX 1250 FA ABS | 2012 |
| Suzuki | GSX 1250 FA ABS | 2013 |
| Suzuki | GSX 1250 FA ABS | 2014 |
| Suzuki | GSX 1250 FA ABS | 2015 |
| Suzuki | GSX 1250 FA ABS | 2016 |
| Suzuki | GSX 1250 FA ABS | 2017 |
| Suzuki | GSX 650 F | 2008 |
| Suzuki | GSX 650 F | 2009 |
| Suzuki | GSX 650 F | 2010 |
| Suzuki | GSX 650 F | 2011 |
| Suzuki | GSX 650 F | 2012 |
| Suzuki | GSX 650 F | 2013 |
| Suzuki | GSX 650 F | 2014 |
| Suzuki | GSX 650 F | 2015 |
| Suzuki | GSX 650 F | 2016 |
| Suzuki | GSX 650 FA ABS | 2009 |
| Suzuki | GSX 650 FA ABS | 2010 |
| Suzuki | GSX 650 FA ABS | 2011 |
| Suzuki | GSX 650 FA ABS | 2012 |
| Suzuki | GSX 650 FA ABS | 2013 |
| Suzuki | GSX 650 FA ABS | 2014 |
| Suzuki | GSX 650 FA ABS | 2015 |
| Suzuki | GSX 650 FA ABS | 2016 |
| Suzuki | GSX 650 FU | 2008 |
| Suzuki | GSX 650 FU | 2009 |
| Suzuki | GSX 650 FU | 2010 |
| Suzuki | GSX 650 FU | 2011 |
| Suzuki | GSX 650 FU | 2012 |
| Suzuki | GSX 650 FU | 2013 |
| Suzuki | GSX 650 FU | 2014 |
| Suzuki | GSX 650 FU | 2015 |
| Suzuki | GSX 650 FUA ABS | 2009 |
| Suzuki | GSX 650 FUA ABS | 2010 |
| Suzuki | GSX 650 FUA ABS | 2011 |
| Suzuki | GSX 650 FUA ABS | 2012 |
| Suzuki | GSX 650 FUA ABS | 2013 |
| Suzuki | GSX 650 FUA ABS | 2014 |
| Suzuki | GSX 650 FUA ABS | 2015 |
| Suzuki | GSX 650 FUA ABS | 2016 |
